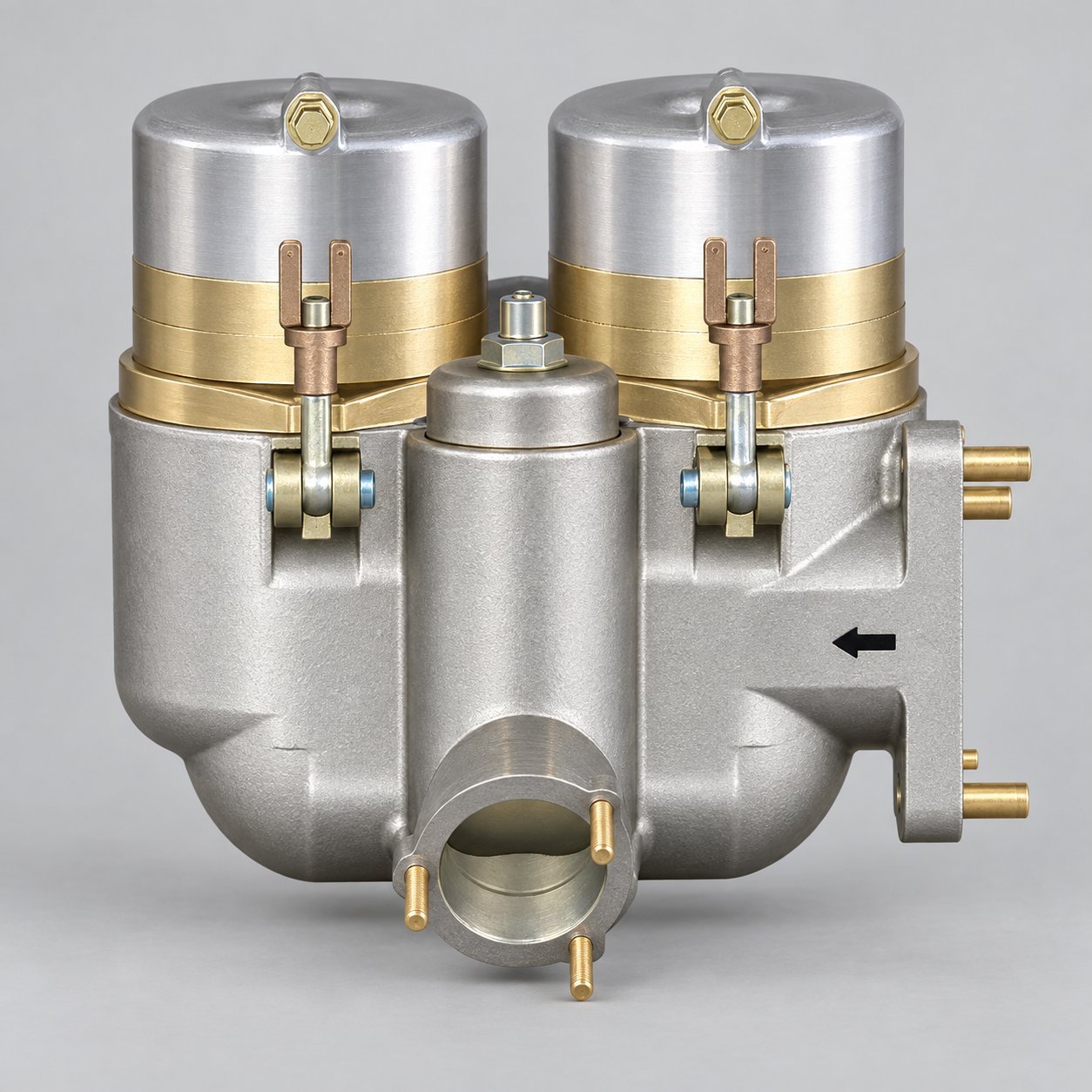

FILTER
8D2.966.133-01
8D2.966.133-01
FILTER
Available on back-order
Description
The main principle and goal of Aviamisto has always been the high quality of products and services, as well as their prompt delivery to customers.
Details
1. Filtration rating 16/25 µm (fine filter element nominal/absolute).
2. Filtration fineness 36/40 µm (coarse filter element nominal/absolute).
3. Working environment – fuel T-1, TC-1, T-2, RT.
4. Nominal pressure of the working medium 1.2 (12) MPa (kgf/cm2).
5. Rated flow rate 1110/6000 l/min.
6. Hydraulic resistance of a clean filter at maximum throughput 1110 l/min, not more than 0.11 (1.1) MPa (kgf/cm2).
7. Temperature range – 60 … + 215 / – 50 … + 120 ° С (ambient / working fluid).
8. Pressure drop across the filter element, at which bypass valve opens 0.14 ±0.005 (1.4 ±0.05) MPa (kgf/cm2).
9. Pressure drop across the filter element, at which an alarm 0.04 ±0.01 (0.4 ±0.1) MPa (kgf/cm2) is triggered.
10. Dry filter weight, no more than 9 kg.
11. Signaling device DC voltage 27 ±3 V.
Payment & delivery
All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.
In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.
Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.
Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.
Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.
Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
