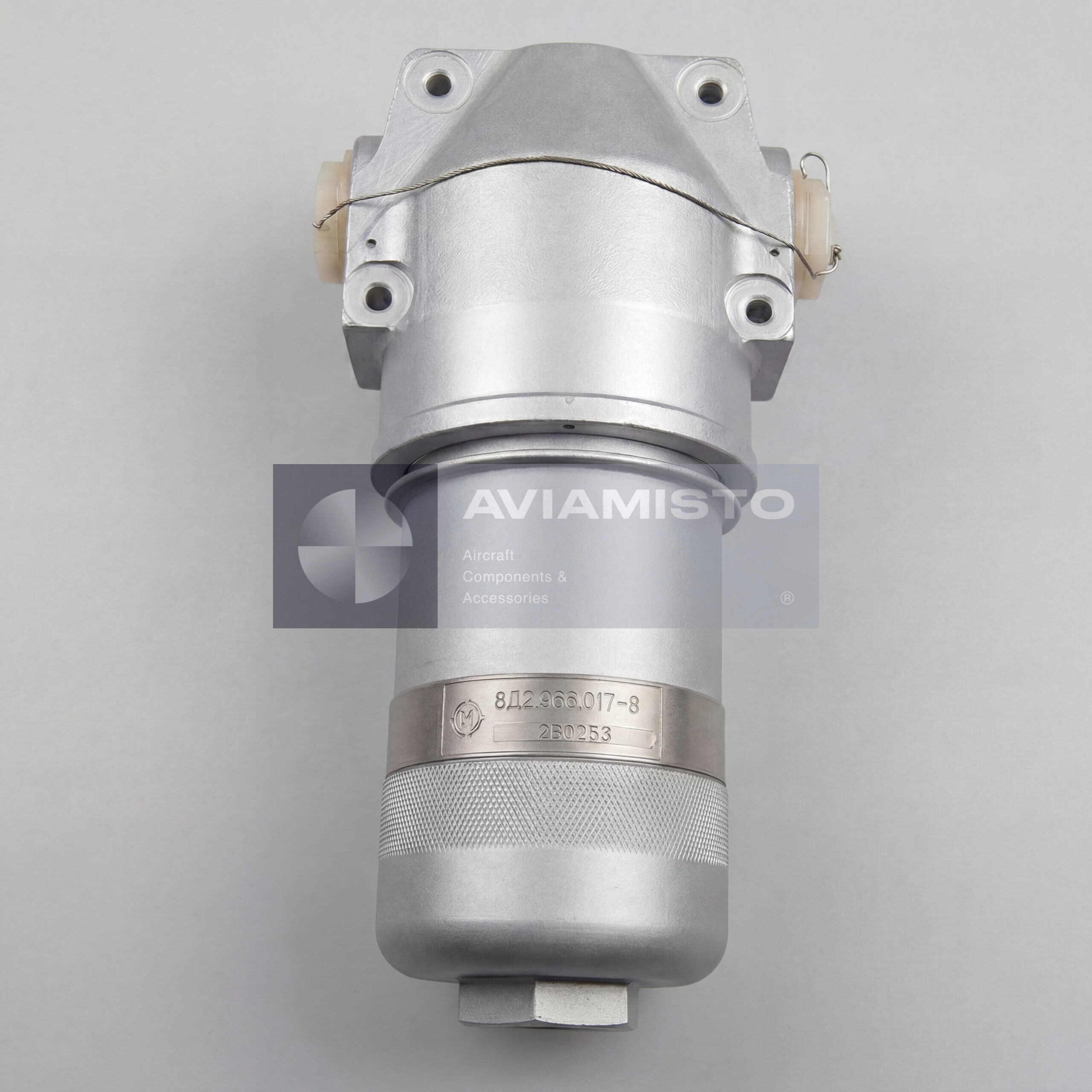

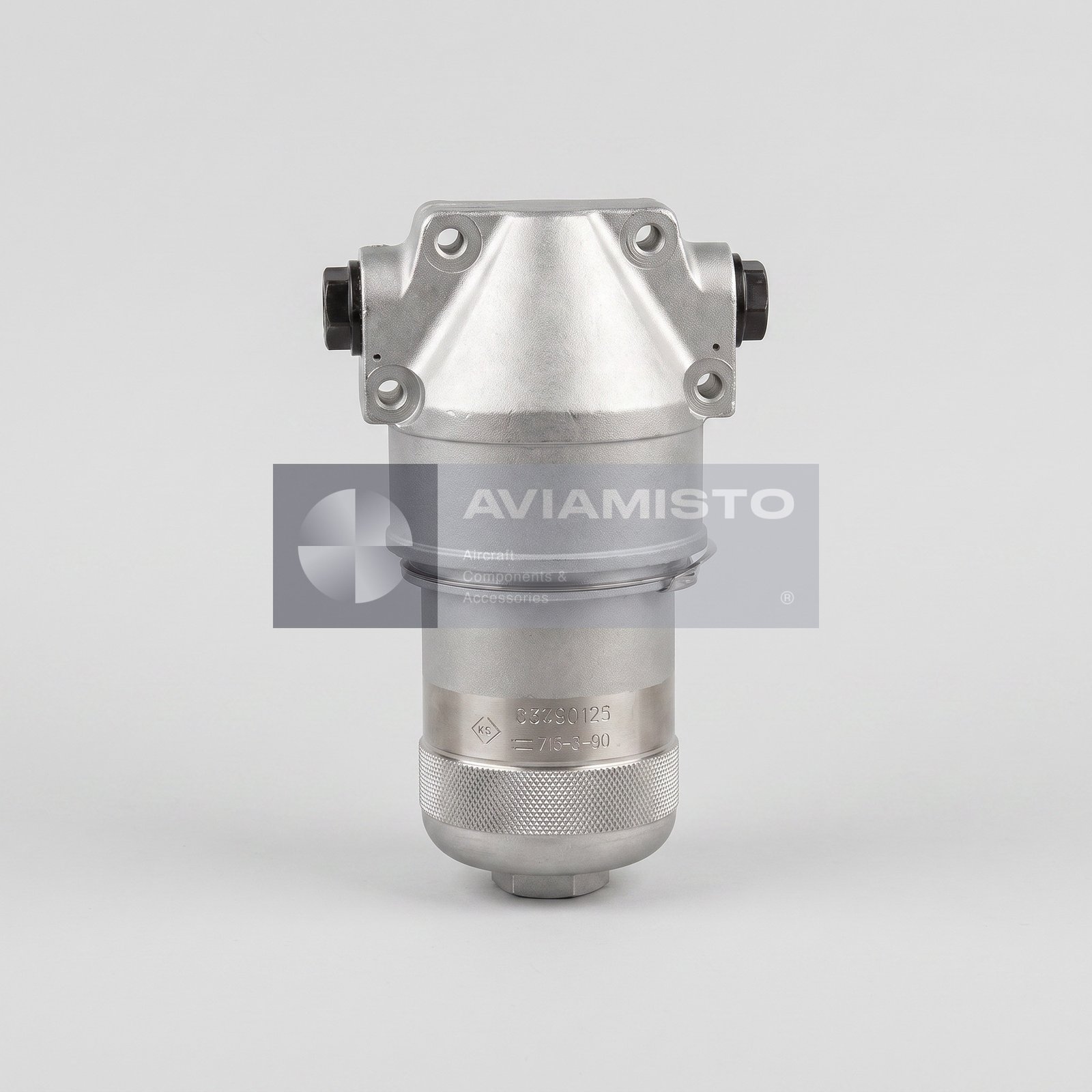

The 8D2.966.017-8 is a hydraulic filter designed to clean hydraulic fluid in high-pressure hydraulic systems of aviation and specialized equipment.

Within the hydraulic system, the filter removes mechanical contaminants from the working fluid, ensuring protection of hydraulic units and stable operation of the system.

The filter is used in hydraulic circuits operating with approved aviation hydraulic fluids and is equipped with protective valve elements to maintain system operability under contamination conditions.

The product is also known under alternative designations 8D2966017-8, which refer to the same product type.

Product Type: Hydraulic filter
Function: Filtration of hydraulic fluid from mechanical contaminants
Application / Where Used: Aviation and specialized equipment hydraulic systems
Working Medium: NGZh-5U
Filter Element Designation: 8D2.966.022-3
Filtration Fineness (Nominal / Absolute): 16 / 25 µm
Nominal Operating Pressure: 21 MPa
Nominal Flow Rate: 40 L/h
Hydraulic Resistance of Clean Filter: Not more than 0.18 MPa
Operating Temperature Range: −60 to +120 °C
Dimensions: B 95 mm, L 205 mm, D 68 mm
Connection Thread: M20×1.5
Weight: Not more than 2.0 kg
Scope of Supply: Filter assembly with regenerable filter element, bypass valve, shut-off valve
Technical Documentation: Hydraulic Filter 8D2.966.017-8 Technical Documentation

All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.

In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.

Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.

Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.

Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.

Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
