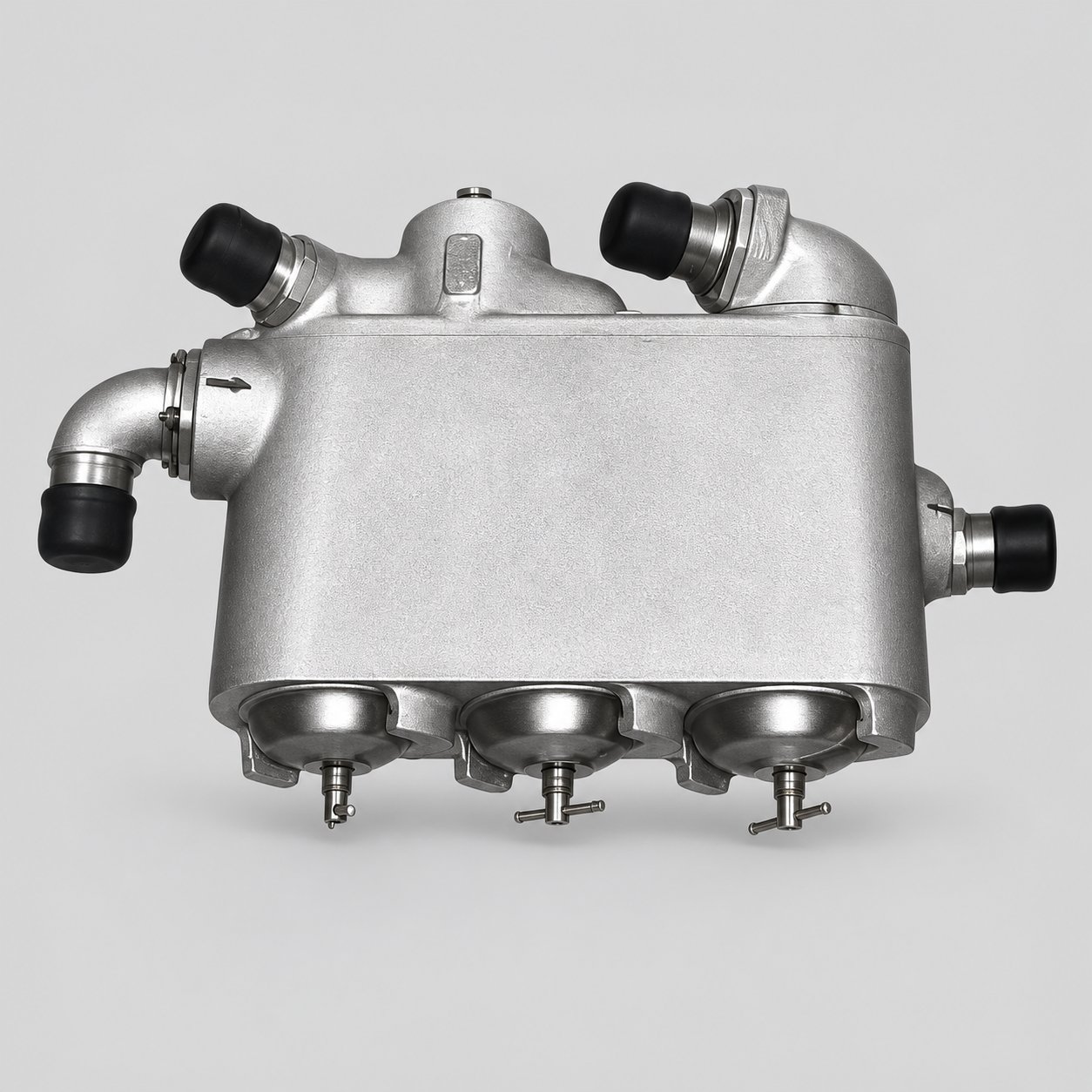

FILTER
722.600T
722.600T
FILTER
Available on back-order
Description
The main principle and goal of Aviamisto has always been the high quality of products and services, as well as their prompt delivery to customers.
Details
1. Filter fineness 90/100 µm (coarse filter element nominal/absolute).
2. Filter fineness 30/40 µm (fine filter element nominal/absolute).
3. Working environment – jet fuel.
4. The nominal pressure of the working medium of the filter is 0.4 (4) MPa (kgf/cm2).
5. Rated capacity of the filter is 4000 l/h.
6. Hydraulic resistance of pure coarse cleaning at nominal capacity, not more than 0.008 (0.08) MPa (kgf/cm2).
7. Hydraulic resistance of a clean fine filter at a nominal capacity, not more than 0.004 (0.04) MPa (kgf/cm2).
8. Temperature range – 50 … + 100 ° С.
9. Pressure drop across the coarse filter element, at which the bypass valve opens 0.025 ± 0.005 (0.25 ± 0.05) MPa (kgf/cm2).
10. Pressure drop across the fine filter element, at which the bypass valve opens 0.05 ±0.005 (0.5 ±0.05) MPa (kgf/cm2).
11. Dry filter weight, no more than 10.7 kg.
Payment & delivery
All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.
In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.
Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.
Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.
Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.
Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
