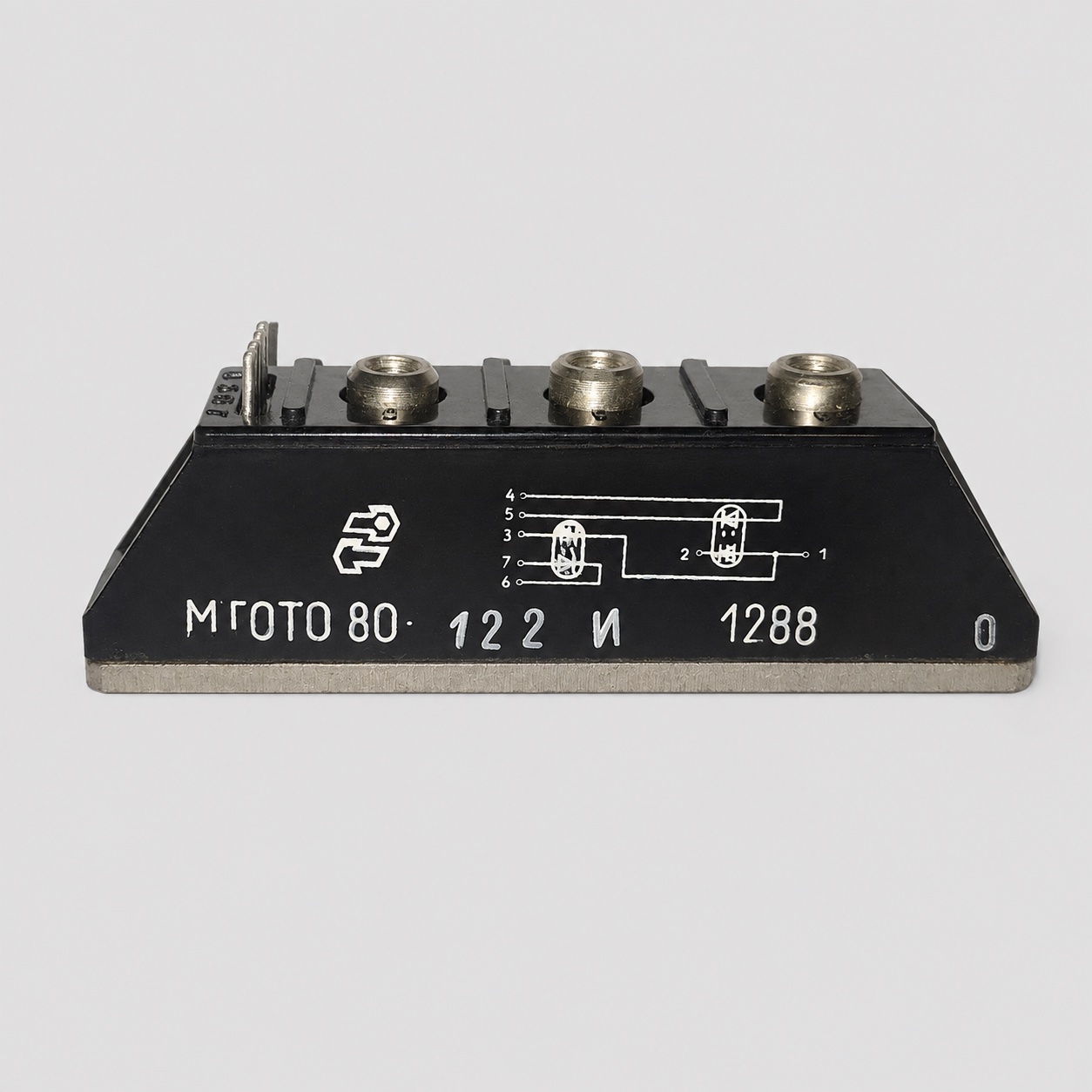

Semiconductor power module based on two open-frame series-connected silicon diffusion optothyristors. Designed for use in DC and AC circuits with a frequency of up to 500 Hz of power converters. The control circuit is galvanically isolated from the main power circuit. The module case is isolated from live parts. The module is sealed in a plastic case and has leads for connecting to an external electrical circuit. The designation of the type and the connection diagram of the optothyristors is given on the case.

1. The maximum permissible average current in the open state is 80A.

2. Repetitive impulse reverse voltage – 1200V.

3. Length – 92 mm.

4. Width – 20 mm.

5. Height – 30 mm.

6. Module weight – 200 g.
