Control Unit
2.003.015-01 ARK-15M
2.003.015-01 ARK-15M
$12800
Control Unit
Description

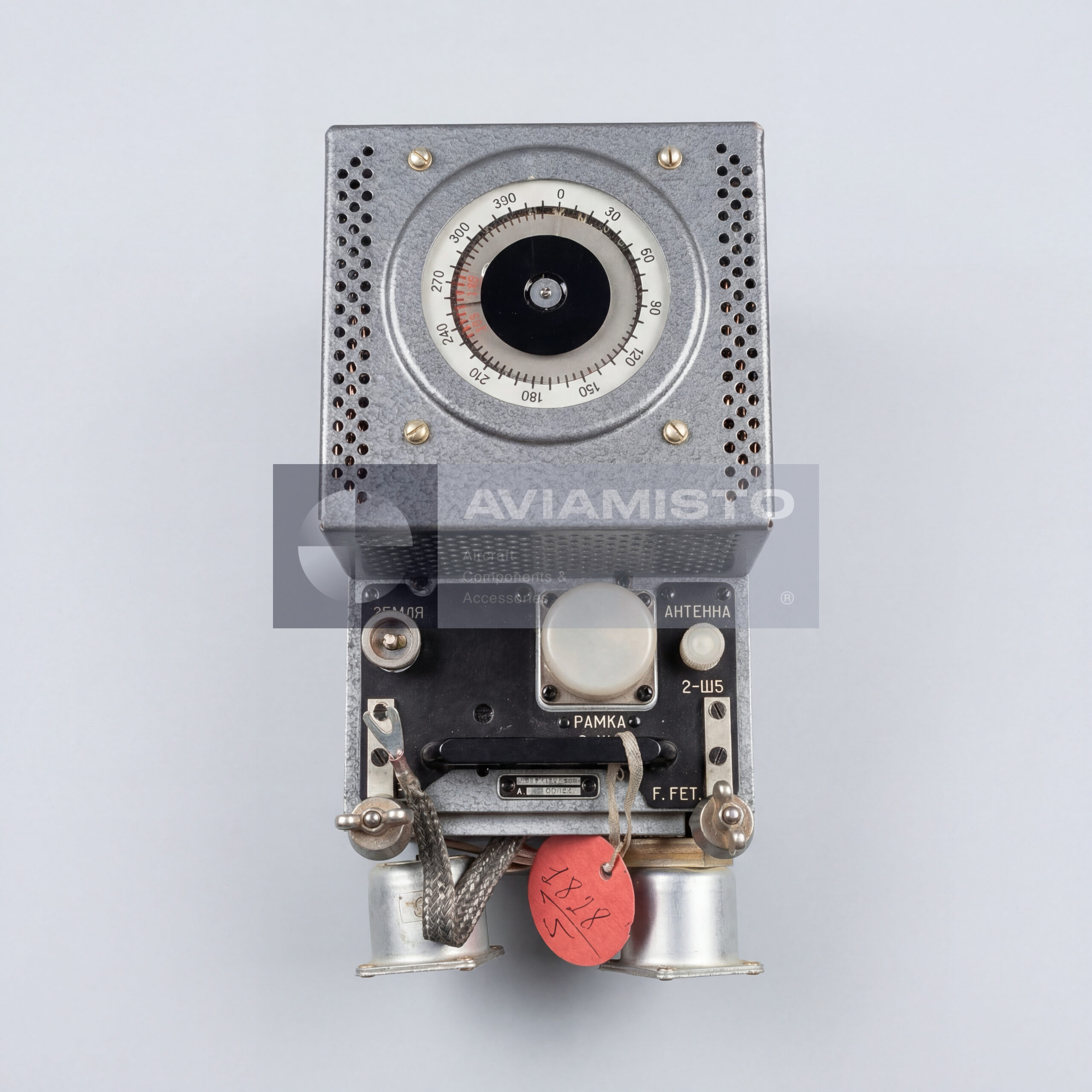

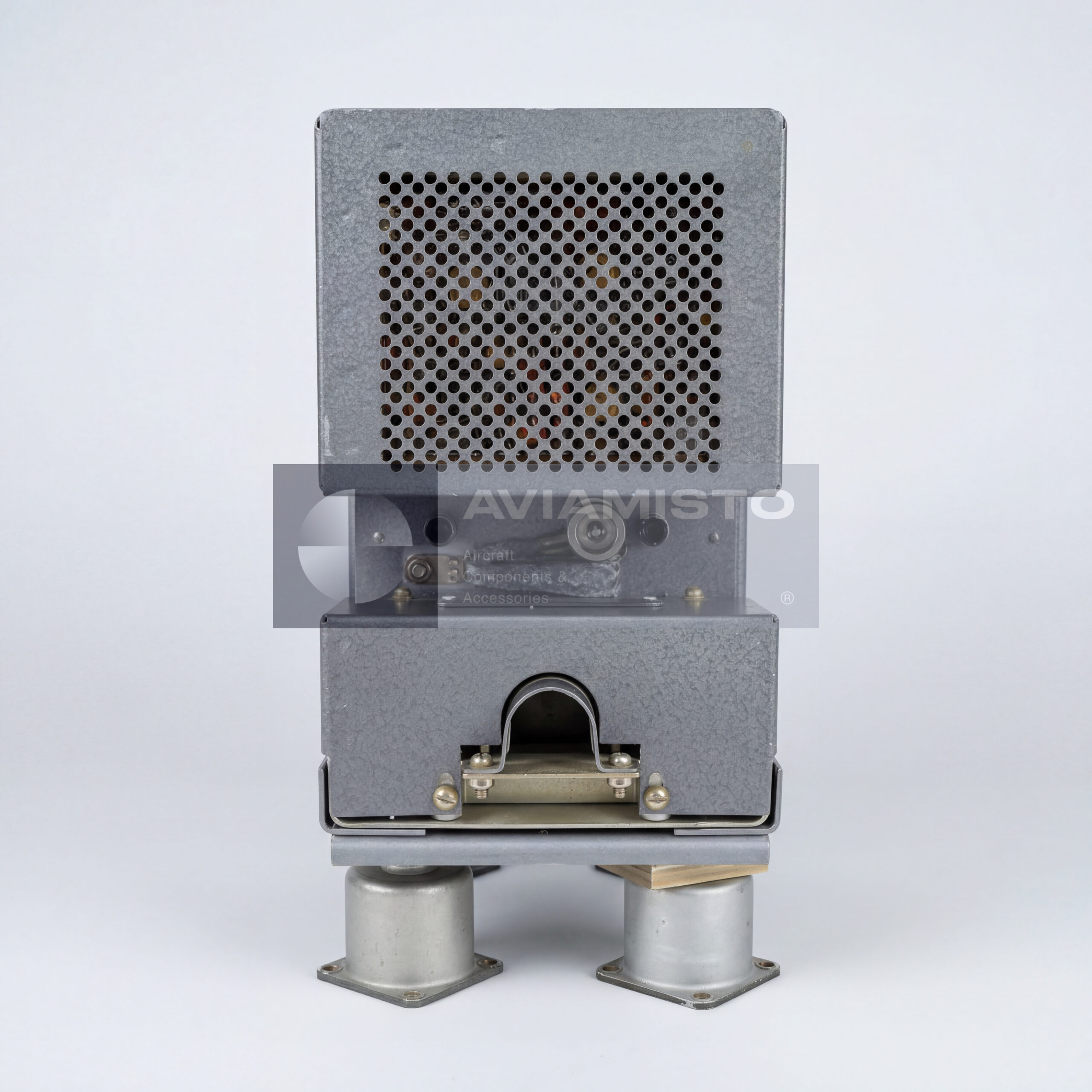

2.003.015-01 Control Unit Overview
The 2.003.015-01 is a control unit (remote control panel) used as part of the ARK-15 / ARK-15M automatic radio compass system. It is designed to control operating modes, select frequencies and manage navigation settings. The unit serves as an interface between the pilot and the radio compass system, enabling efficient use of onboard radio navigation equipment.
2.003.015-01 Operating Functions
The unit provides frequency selection and mode control of the radio compass. It allows switching between preset channels and adjusting frequencies using mechanical selectors. The control panel supports key operating modes including Compass, Antenna and Loop, ensuring full control over radio direction finding and signal reception.
2.003.015-01 Aviation Applications
The unit is installed on aircraft and helicopters equipped with ARK-15 or ARK-15M systems. It is used on platforms such as Mi-8, Il-76, An-24, An-26 and other aircraft. Within the navigation system, it enables quick switching between main and standby radio beacons, supporting approach and en-route navigation tasks.
2.003.015-01 Installation Context
The control unit is installed in the cockpit on the instrument panel or central console. It includes mechanical frequency selectors, mode switches and volume control. Power is supplied through the main receiver unit. The product is also known under designation 2.003.015-01, referring to the same control unit within ARK-15 systems.
Details
Product Type: Control unit (remote control panel)
Application / Where Used: ARK-15 / ARK-15M airborne radio compass system
Function: Frequency selection and mode control
Operating Modes: Compass / Antenna / Loop
Frequency Range (System): 150 – 1799.5 kHz
Frequency Step: 0.5 kHz
Control Features: channel selection, frequency tuning, mode switching, volume control
Channel Selection: main and standby frequencies
Power Supply: via receiver (27 V DC / 115 V AC, 400 Hz)
Installation: cockpit instrument panel
System Components: operates with receiver units, antenna system and matching device
Technical Documentation: ARK-15 / ARK-15M documentation
