FANS
EV-5.6-3660
EV-5.6-3660
FANS
Available on back-order
Description

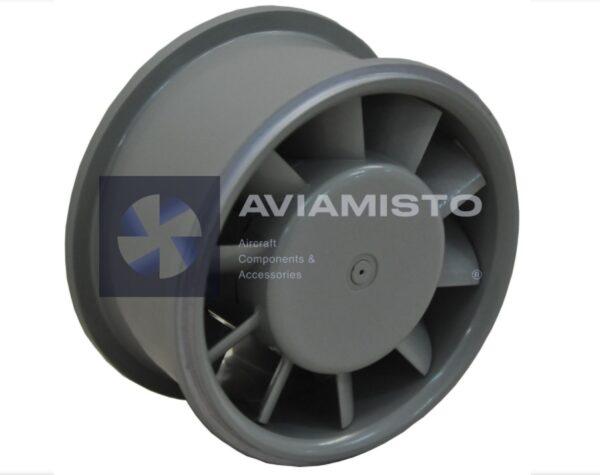

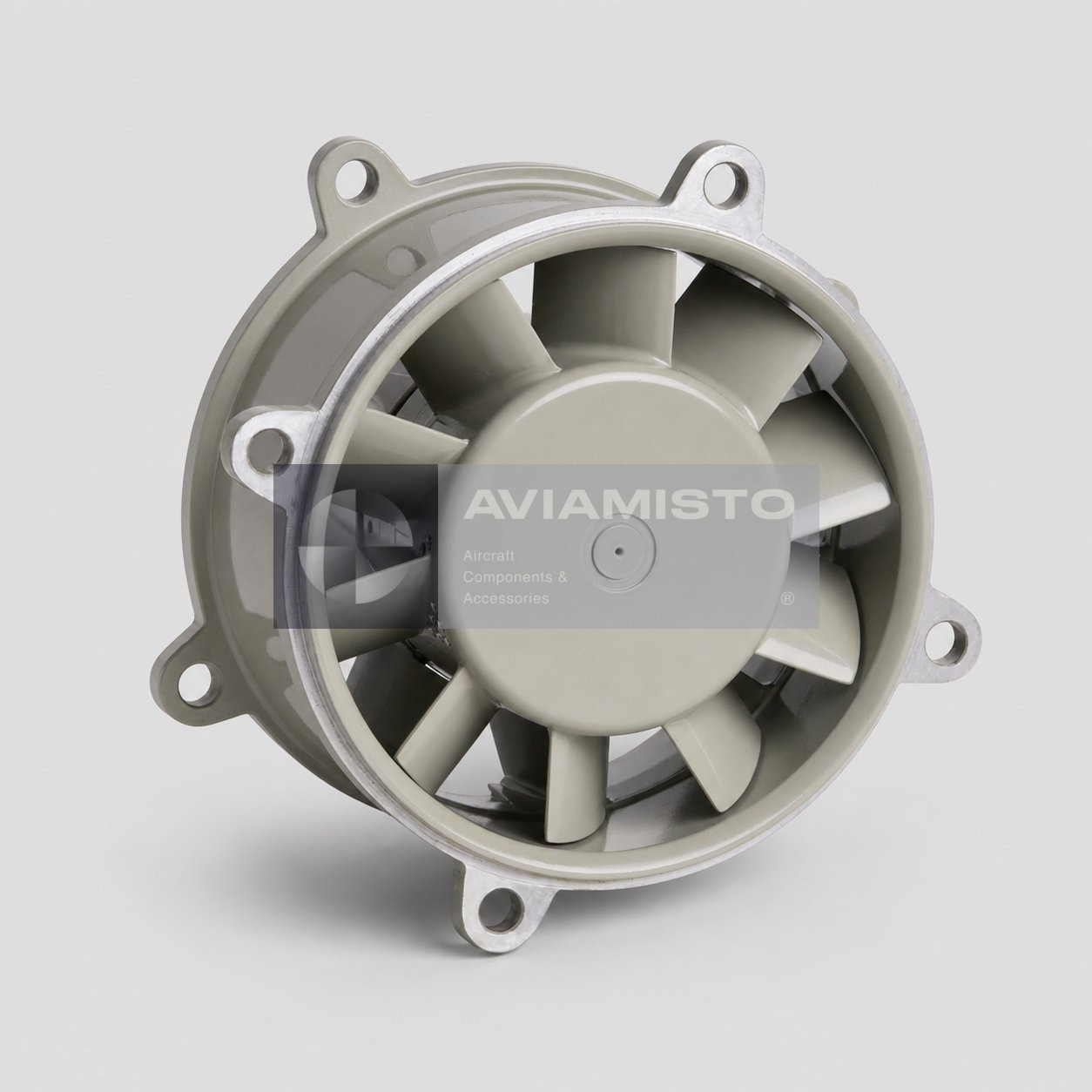

Fans EV-5,6-3660 are designed for cooling radio electronic equipment. EVs are designed for power supply from a three-phase alternating current with a frequency of 400 Hz.
- Operating mode - continuous (S1) at any position in space.
- The technical level is quite high and is comparable with the technical level of foreign analogues.
- It is possible to modify the fans for the customer's supply voltage.
Details
1. Nominal capacity 560 m3 / h;
2. Full pressure at rated performance 800 (80) Pa (kgf / m2);
3. Supply voltage 200 V;
4. The frequency of the supply voltage is 400 Hz;
5. The number of phases of the supply network is 3;
6. Power consumption, no more than 280 W;
7. Consumption current, no more than 1.3 A;
8. Rotation frequency, not less than 10800 min-1;
9. Sound level, no more than 85 dBA;
10. Weight, no more than 1.0 kg;
11. Guaranteed operating time 2000 hours.
12. Ambient temperature during operation from -60 to +100.
