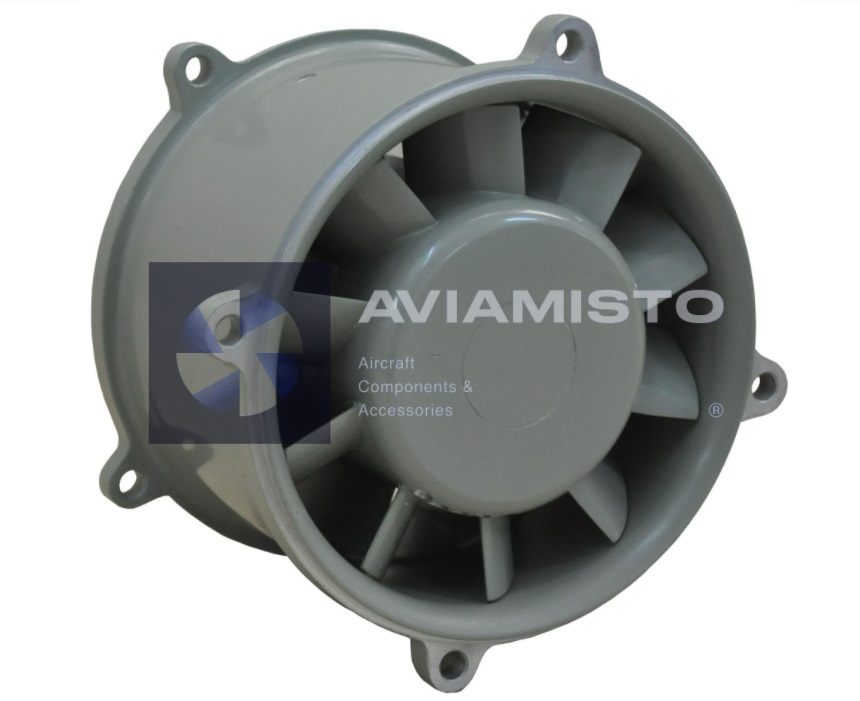

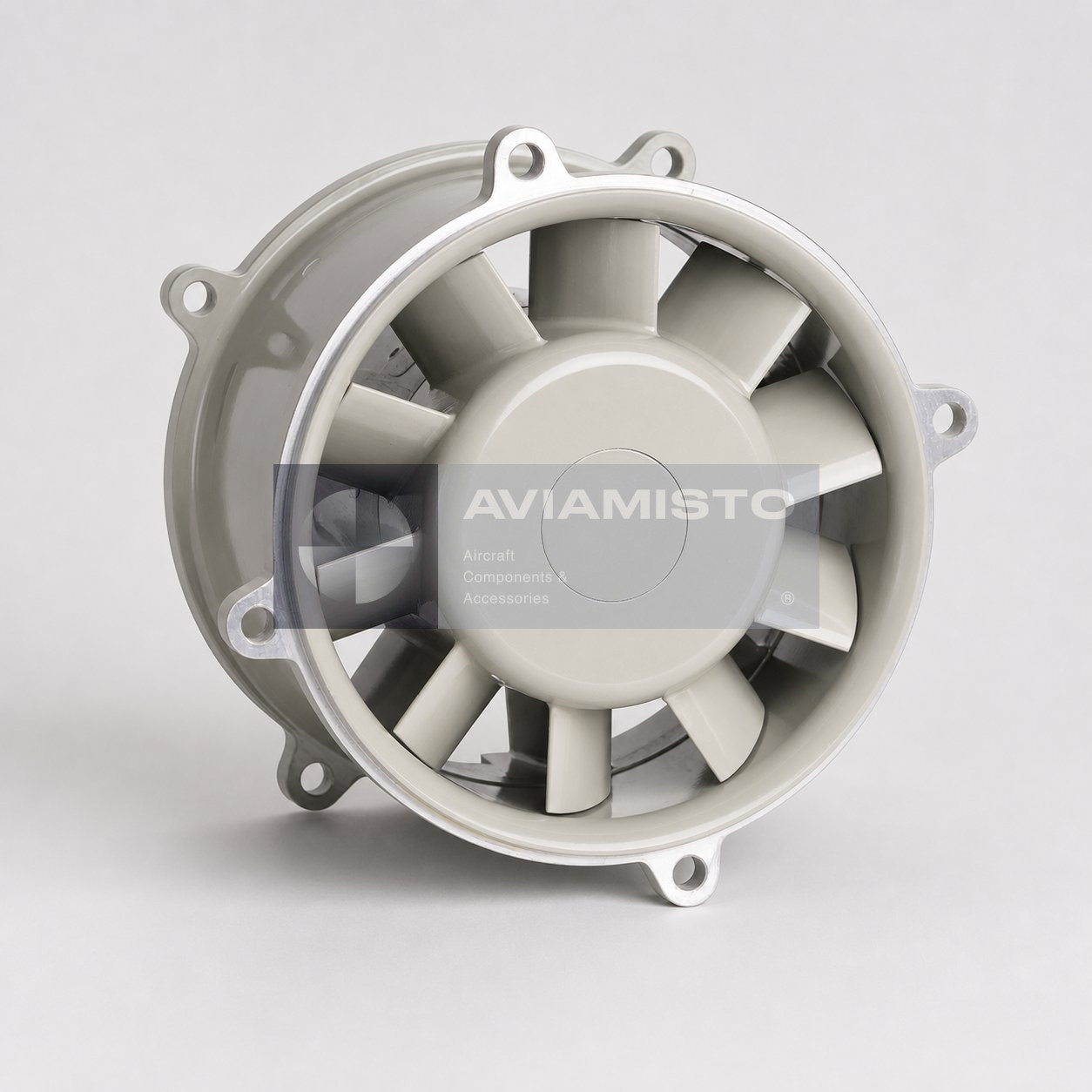

High-frequency axial electric fan EV-11-3660 is designed for cooling radio electronic equipment, designed for power supply from a three-phase alternating current with a frequency of 400 Hz. Any position in space.

1. Nominal capacity 1100 m3 / h;
2. Full pressure at rated performance 1200 (120) Pa (kgf / m2);
3. Supply voltage 200 V;
4. The frequency of the supply voltage is 400 Hz;
5. The number of phases of the supply network is 3;
6. Power consumption, no more than 800 W;
7. Consumption current, no more than 3.0 A;
8. Rotation frequency, not less than 11000 min-1;
9. Sound level, no more than 92 dBA;
10. Weight, no more than 2.3 kg;
11. Guaranteed operating time 3000 hours.
12. Ambient temperature during operation from -60 to +100 ° С.
