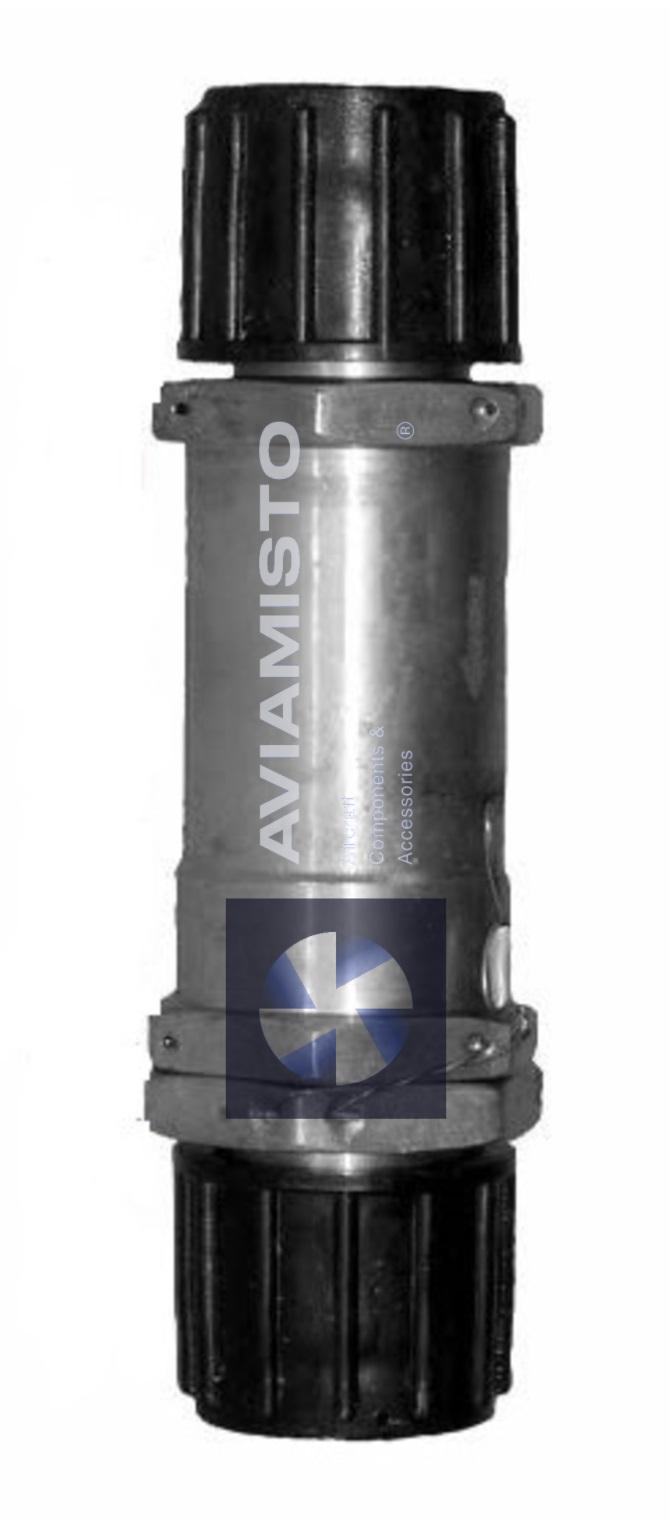

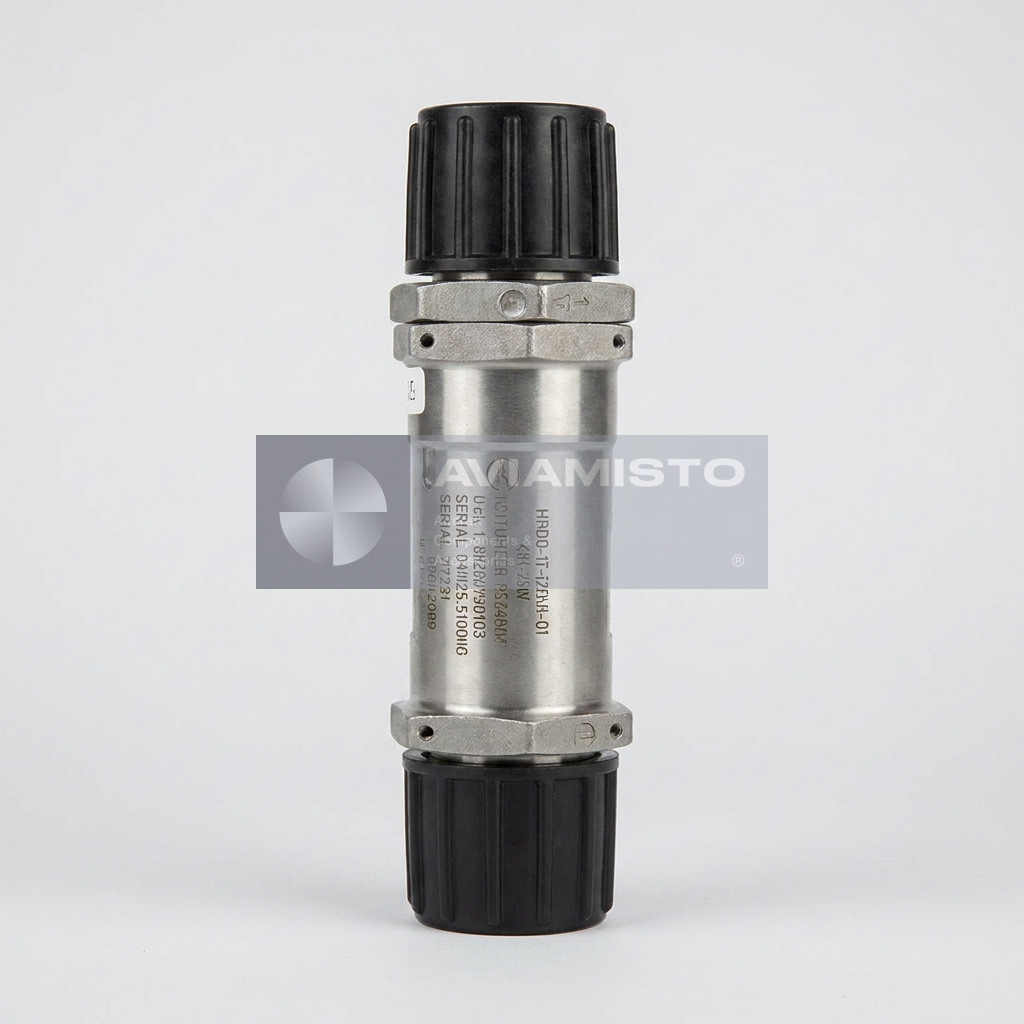

Check valves OK 12A are intended for passing of working liquid in the set direction (on the arrow shown on the case) and "locking" of hydraulic system at a return flow of liquid.

1. Nominal pressure of the working medium is 25.5 (255) MPa (kgf / cm2).

2. Nominal throughput of 50 l / min.

3. Hydraulic resistance of the check valve at nominal throughput, no more than 0,1 (1,0) MPas (kgf / cm2).

4. Temperature range -60… + 150С.

5. Valve opening pressure 0,5 ± 150 kgf / cm2.

6. Weight, no more than 0,3 kg.

7. Dimensions LxdxM 109x12x22 × 1.5 mm.
