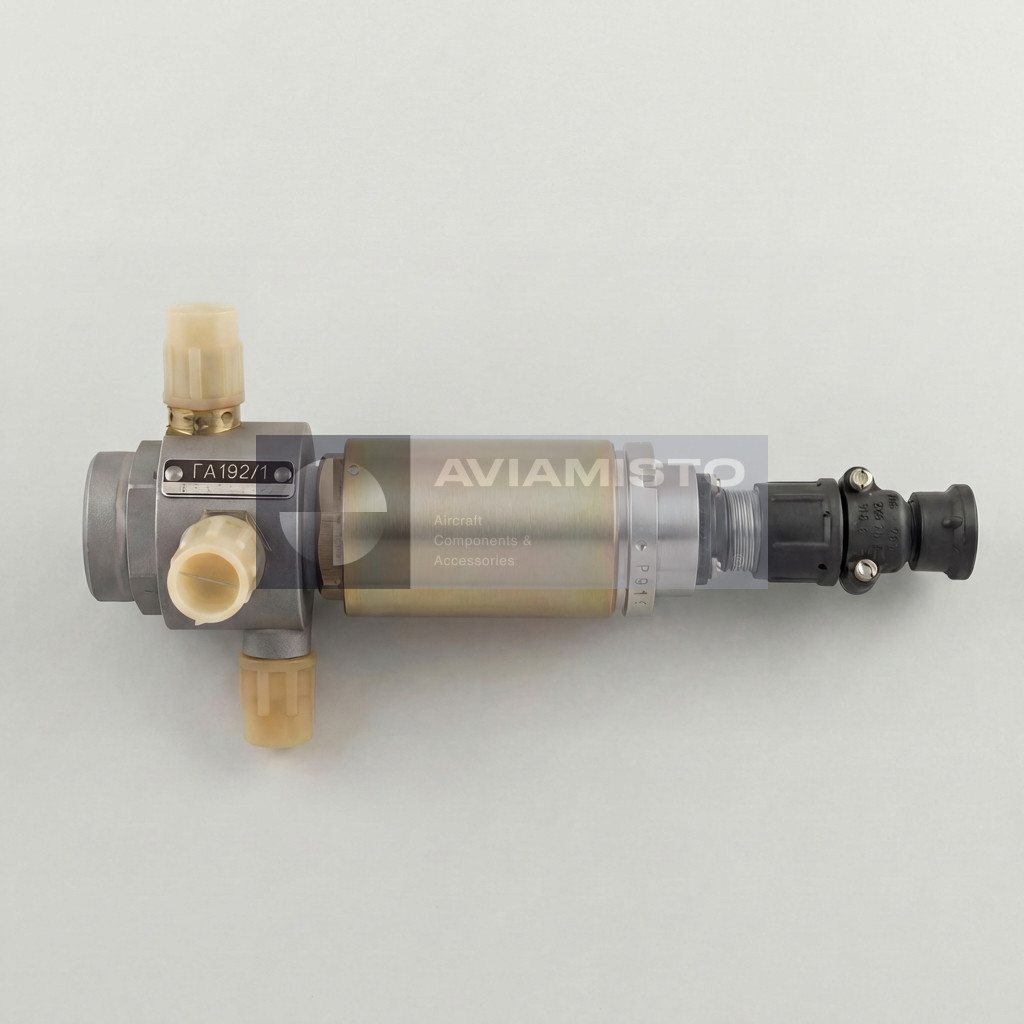

The GA-192/1 is an aircraft electromagnetic hydraulic valve designed for remote control of hydraulic units within onboard hydraulic systems.

Within the hydraulic system, the valve operates as a two-position spool mechanism with electromagnetic actuation, providing controlled switching of hydraulic fluid flow to connected hydraulic aggregates.

The valve is applied in aircraft hydraulic systems where electrically controlled routing of hydraulic fluid is required for operation of control and auxiliary mechanisms.

The product is also known under alternative designations GA-192/1, ГА-192/1, which refer to the same product type.

Product Type: Electromagnetic hydraulic valve
Function: Remote control of hydraulic fluid flow
Application / Where Used: Aircraft hydraulic systems
System / Installation Area: Hydraulic control and auxiliary circuits
Compatible Aircraft / Equipment: Mi-8, An-12, Tu-134
Working Medium: AMG-10
Operating Pressure: 150 (+15 / −2) kgf/cm²
Maximum Operating Pressure (Emergency): 180 kgf/cm²
Permissible Back Pressure in Drain Line: Not more than 20 kgf/cm²
Hydraulic Resistance at 12 L/min: Not more than 10 kgf/cm²
Operating Voltage: 27 ± 10 V DC
Current Consumption: Not more than 1.2 A
Response Time: Not more than 0.1 s
Operating Temperature Range: −60 to +80 °C
Operating Mode of Electromagnet: Continuous
Service Life (Cycles): 75,000 operations
Dimensions: 213 × 88 × 44 mm
Weight: Not more than 1.0 kg
Technical Documentation: GA-192/1 Technical Description and Operating Documentation
