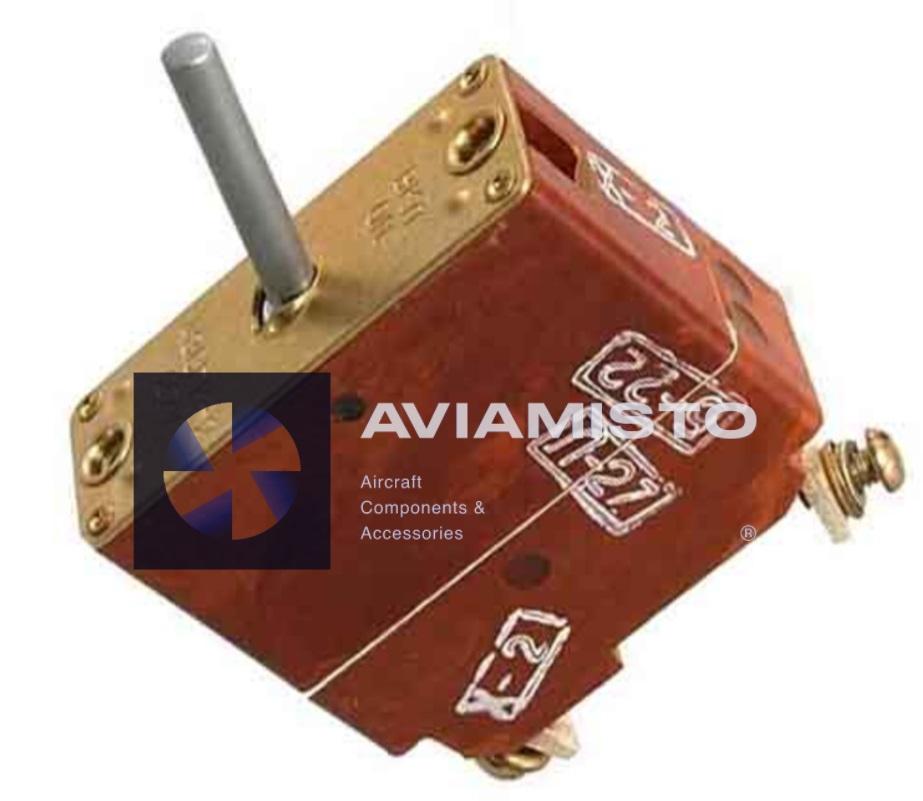

The automatic circuit breaker AZSGK-2 is designed to protect the electrical network of aircraft electrical systems from dangerous overload currents and short circuits when installed in cabins with red lighting. The circuit breakers of the AZSGK network are made without a free release, i.e. the machine does not open the circuit in case of current overloads if the handle is held in the "On" position and opens the circuit after the handle is released. The AZSGK machines differ from the AZSG machines by the longer handle length and the absence of a luminous eye at the end of the handle. Automatic protection devices AZSGK for currents from 2 to 15 amperes are made with thermo-bimetallic releases having a current-dependent characteristic, automatic machines for currents from 20 to 50 amperes are made with thermo-bimetallic and electromagnetic releases.

1. The voltage of the direct current network is 27 ± 10% V;
2. Rated current 2; 5; ten; 15; twenty; 25; thirty; 40; 50A;
3. Kinematic connection of the bimetallic plate with contacts with free decoupling;
4. Time constant of network inductance for machines:
– for a machine for a current of 2-20 A – 0.015 sec,
– for a machine for a current of 25-50 A – 0.001 sec;
5. Long-term operating mode;
6. Number of inclusions, no more than 10000;
7. Dimensions 55.5 x 21.5 x 88 mm;
8. Weight, no more than 121 g.

All shipments are carried out from our international warehouse in Dubai (UAE), as well as from our partners’ remote warehouses.

In Stock — items available in stock at the Dubai warehouse are dispatched within 5–10 business days after receiving 100% prepayment.

Remote Stock — items available at our partners’ remote warehouses are supplied within an average of 30–45 business days after receiving 100% prepayment.

Pre-Order — made-to-order products are manufactured and delivered within an average of 45–60 business days. Payment terms: 50% advance payment to start production, with the remaining 50% paid before dispatch from the Dubai warehouse after full readiness for shipment.

Returns & Changes (Restocking Fee)
For selected items, a RESTOCKING FEE of 10% may apply in case of return, order cancellation, or changes to the order specifications. This condition applies only to certain products and is confirmed at the order approval stage.

Warranty
All products are covered by a standard 6-month warranty.
Extended warranty is available upon request and is agreed individually; it may affect the final product price.
