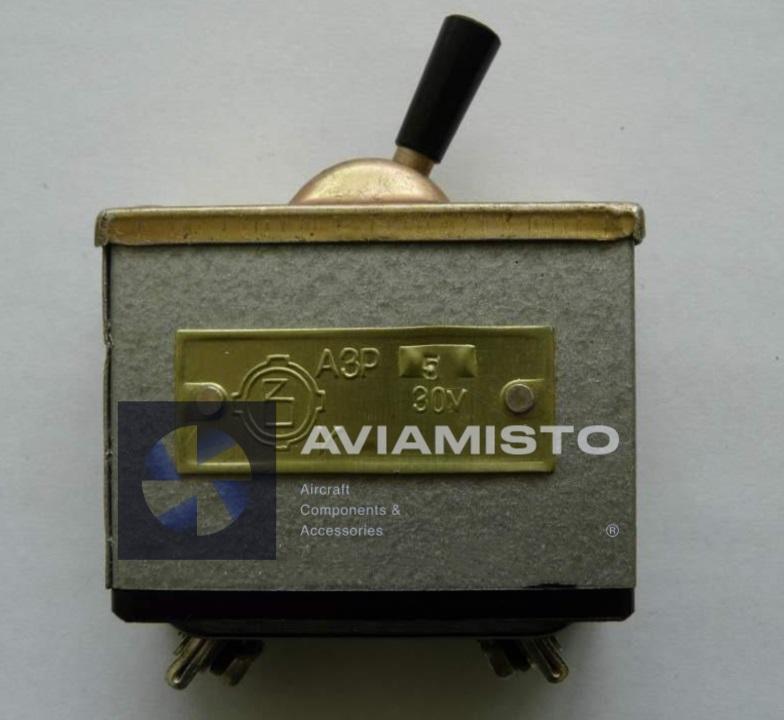

Automatic circuit breaker AZR-5 is designed for automatic shutdown of electricity consumers in case of overloads and short circuits in DC circuits at voltages up to 30V in stationary and mobile installations. Automatic protection circuit breakers AZR have a free release mechanism, which does not allow the contacts to be kept closed until the bimetallic plate has cooled to a certain temperature.

1. The voltage of the direct current network is 27 ± 10% V;
2. Rated current 2; 3; 4; 5; 6; ten; 15; twenty; thirty; 40; 50; 60; 70; 80; 90; 100; 125; 150 A;
3. Kinematic connection of the bimetallic plate with contacts with free decoupling;
4. Long-term operating mode;
5. The number of cycles – 10,000 switching on and off of the rated current of the active load;
6. Working ambient temperature from -60 to + 60 ° С;
7. The warranty period of storage and operation is 10 years.
