AUTOMATIC MACHINES PROTECTION
AZR-100K
AZR-100K
AUTOMATIC MACHINES PROTECTION
Available on back-order
Description

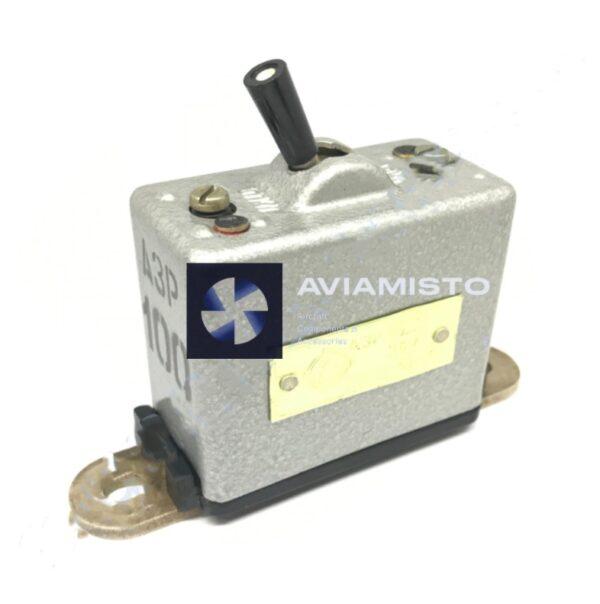

Automatic circuit breaker AZR-100K is designed for automatic shutdown of electricity consumers in case of overloads and short circuits in DC circuits at voltages up to 30V in stationary and mobile installations. The machines with the “K” index are made under the illumination of red light and differ from the machines without the index by the application of white paint to the end of the handle instead of the phosphor mass. Automatic circuit breakers AZR-100K have a free release mechanism, which does not allow keeping the contacts closed until the bimetallic plate has cooled to a certain temperature.
Details
1. The voltage of the direct current network is 27 ± 10% V;
2. Rated current 2; 3; 4; 5; 6; ten; 15; twenty; thirty; 40; 50; 60; 70; 80; 90; 100; 125; 150 A;
3. Kinematic connection of the bimetallic plate with contacts with free decoupling;
4. Long-term operating mode;
5. The number of cycles – 10,000 switching on and off of the rated current of the active load;
6. Working ambient temperature from -60 to + 60 ° С;
7. The warranty period of storage and operation is 10 years.
