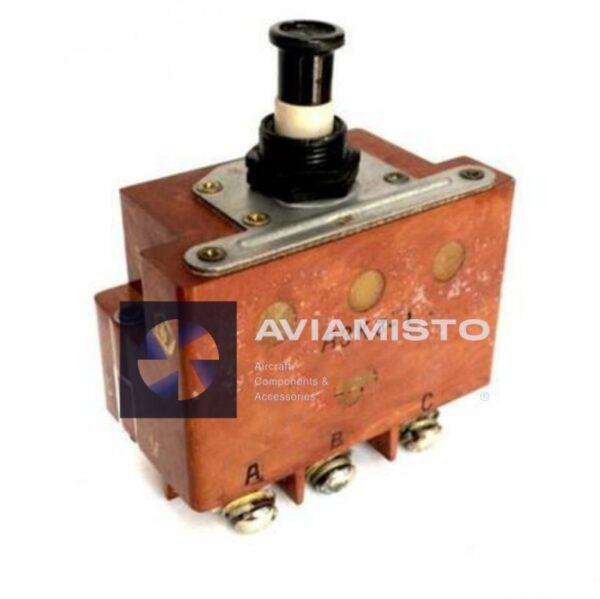

Three-pole three-pole circuit breaker circuit breaker AZK3-1 is designed to protect AC electrical circuits from current overloads and short-circuit currents that are unacceptable in magnitude and time.

1. Voltage of an alternating current with a frequency of 400 Hz:
– linear 200V,
– phase 115V;
2. Three-phase type of current;
3. Rated current of the DC circuit 1; 2; 3; 4; 5; 7.5; ten; 15; twenty; 25; thirty; 35; 40; 50A;
4. Thermal release response time, no more than 30 minutes;
5. Working ambient temperature from -60 to + 60C;
6. Relative air humidity at to env. environments +40 C, up to 98%;
7. Kinematic connection of a bimetallic plate with contacts with free decoupling;
8. Dimensions 56 x 23 x 101mm;
9. The general warranty period is 10 years;
10. Weight, no more than 140g.
