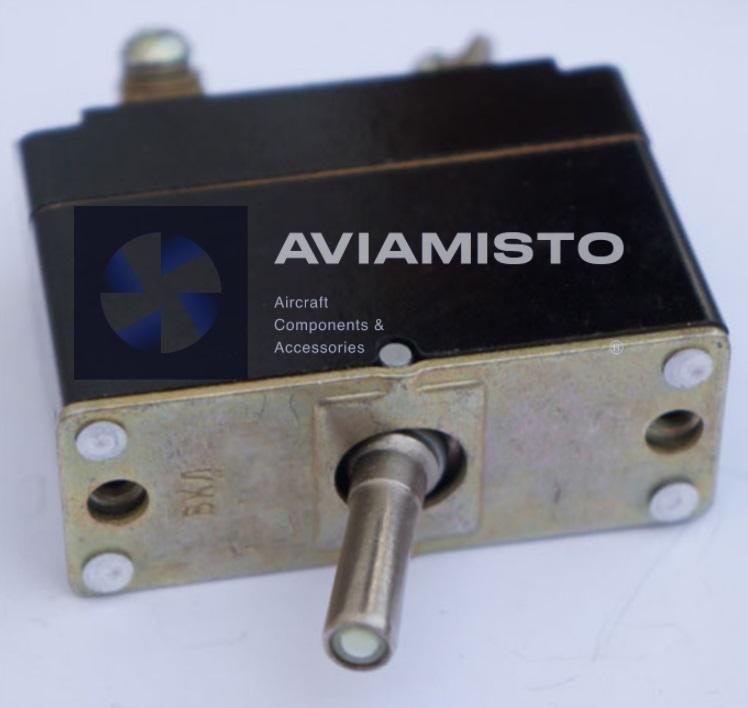

Designed to protect on-board DC electrical networks, aircraft, from inadmissible in magnitude and duration current overloads and short circuits. When the current increases above the permissible, the sensitive element acts on the latch of the mechanism and thereby opens the contacts. The circuit breaker is made with thermo-bimetallic and electromagnetic releases.

1. The voltage of the DC network is 27V;

2. Rated current 60; 70; 80; 90; 100; 125; 150A;

3. Working ambient temperature from –60 to + 60 ° С;

4. Resource 3000 flight hours;

5. Service life 10 years;

6. Overall dimensions 95 × 26.5 × 85mm;

7. Weight, not more than 170g.
