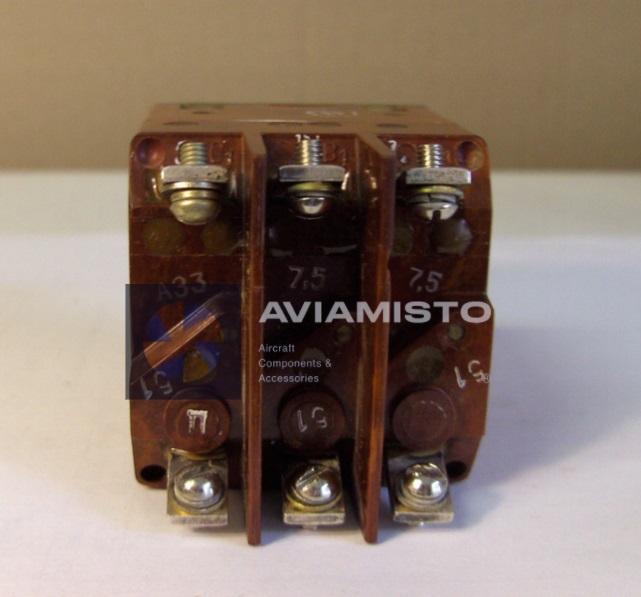

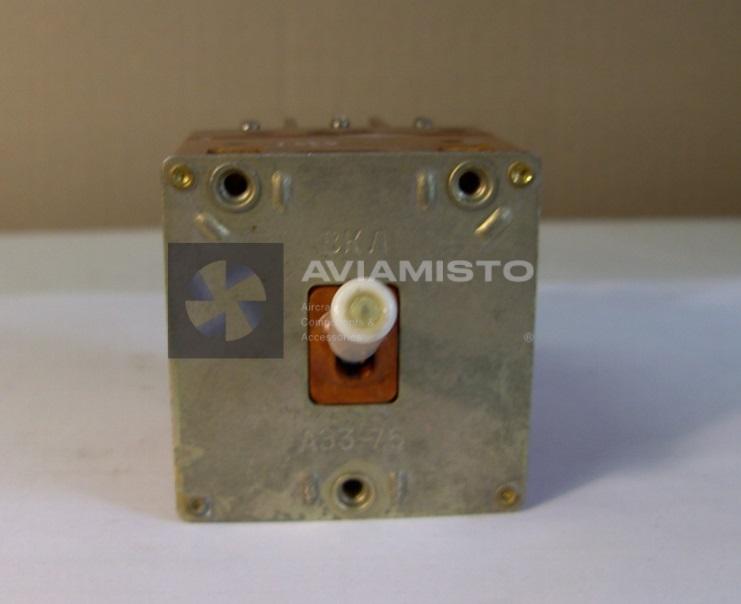

The automatic circuit breaker for the three-phase alternating current network AZ3-7.5 is designed to protect electrical equipment from current overloads that are dangerous in magnitude and time. The circuit breakers are also three-pole switches.

1. Rated voltage of an alternating current circuit with a frequency of (400 ± 40) Hz, no more than 200V;

2. Rated current 2; 3, 4, 5, 7.5; 10, 15; twenty; 25; thirty; 40, 50A;

3. Thermal release tripping current:
– for machines for currents 2-10 A – 1.5I nom,
– for machines for currents of 15-100 A – 1.4I nom;

4. The response time of the thermal release at an ambient temperature of + 60 ° C, up to 30 min;

5. Operating current of the electromagnetic release:
– for machines for currents of 20-50 A – 10-20 I nom,
– for machines for currents 75; 100 A – 9-14 I number;

6. The response time of the electromagnetic release is 10ms;

7. Relative humidity of the environment at t ° C up to + 40 °, up to 98%;

8. Working ambient temperature from -60 to + 60 ° С;

9. The general warranty period is 8 years;

10. Weight, no more than 280g.
