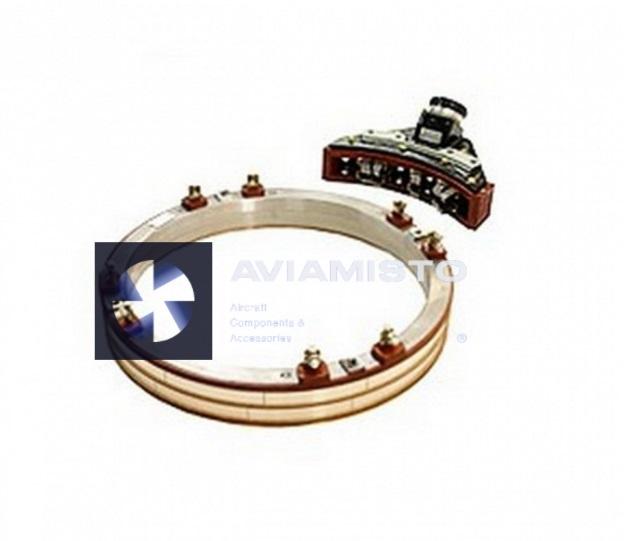

Pantograph TS-6 is designed to transmit single-phase alternating current power to the propeller anti-icing system and the fairing. It is used on airplanes.

1. Supply voltage of alternating current 115 ± 11.5 V.
2. The frequency of the current is 400 Hz.
3. Current strength, no more than 65 A.
4. The transmitted power is 7.5 kW.
5. The frequency of rotation of the slip rings is 1245 rpm.
6. Overall dimensions of the contact ring 70x300x300 mm.
7. Overall dimensions of one box of brush holders 190x135x135 mm.
8. Overall dimensions of one brush holder 250x285x155 mm.
9. Product weight, no more than 74.5 kg.
