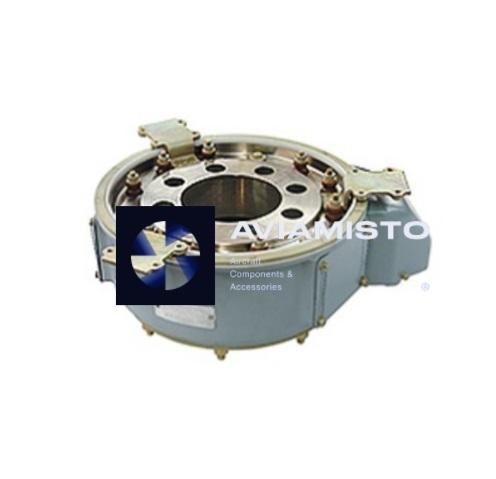

Current collector 8AT-7420 is designed for electrical connection of the rotating tail rotor with the stationary electrical power system of the object. It is used on the Mi - 8, Mi - 24 aircraft.

1. The supply voltage for the rings of the power circuit is 208 ± 20.8 V.
2. Frequency 400 ± 20 Hz.
3. Current through one power ring, no more than 24 A.
4. The frequency of rotation of the collector is 1130 rpm.
5. Product weight, no more than 3,950 kg.
6. Dimensions 170x265x301 mm.
